This Integrated Sluice Gate Control System integrates sluice gate body, control terminal and power supply system, supports automatic gate opening adjustment, multi-sensor data collection, remote & local multi-mode control, 4G & Bluetooth dual communication, network camera video monitoring and large-capacity offline data storage with dual hardware watchdog stability protection.
Custom-size aluminum alloy sluice gate bodies, TF memory expansion cards, solar power supply kits, various water monitoring sensors and lightning protection modules are available for matching purchase.

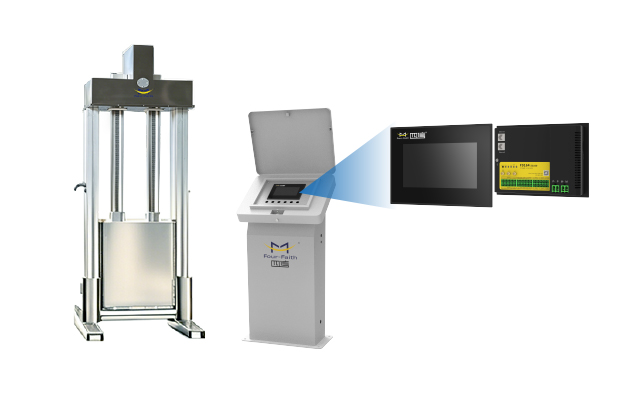

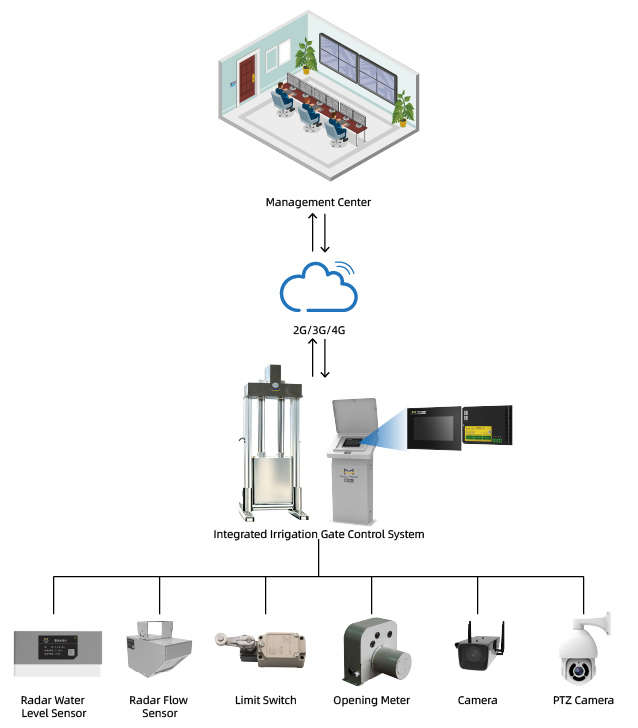

F-IZC100 Integrated Measurement & Control Sluice Gate, also known as Integrated Sluice Gate Control System, is an automated intelligent high-performance hydraulic control unit composed of sluice gate body, control terminal and power supply system. It is developed to realize precise opening and closing adjustment of channel sluices to satisfy irrigation water management demands. It supports full functions including water level & flow data acquisition, snapshot capture, remote and local manual operation, and is compatible with water level meters, flow transmitters and water quality sensors. Adopting industrial hardware design, IP68 underwater sluice structure and wide temperature adaptability, it runs stably in unattended outdoor environments and is widely deployed for digital irrigation districts and smart agriculture projects.
Industrial core configuration: high-performance 32-bit communication processor and full-network 4G wireless module, DC 9–36V wide voltage input;

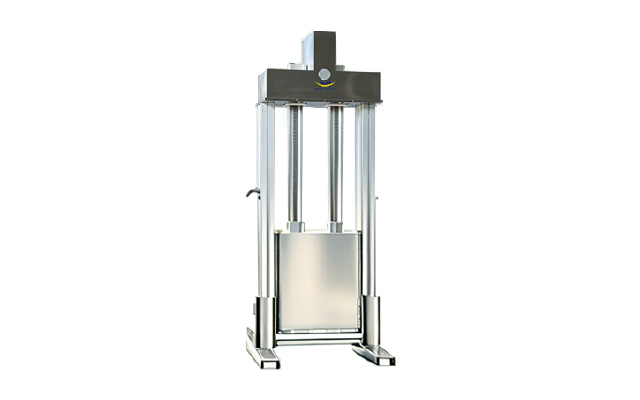

Sluice gate with IP68 underwater protection, effectively avoiding silt accumulation and frost heave deformation, stable operation under -40~70℃ and 0~95% non-condensing humidity;
Dual on-chip & off-chip hardware watchdog plus automatic reconnection mechanism ensures permanent online and stable data transmission;
Complete circuit protection: isolated RS232/RS485 interfaces, 15KV ESD protection for SIM slot, power reverse & overvoltage prevention;

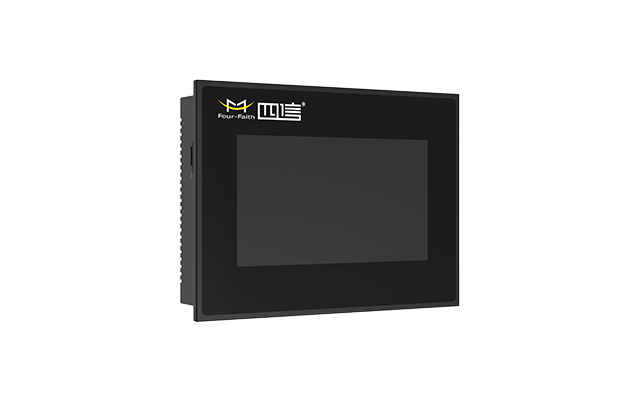

Three independent control methods: remote platform/APP control, 10-inch IPS touch screen operation and physical button control with emergency stop & lock;
Rich extended ports: 4×RS485,1×RS232,13×DI,6×DO,6×AI, dual RJ45 ports, 6-channel 12V sensor power output with max 3A total current;
Dual communication design: full-network 4G LTE + Bluetooth V5.0 for on-site mobile debugging, supports simultaneous connection to 4 background servers;
Built-in 32/64M Flash storage, expandable TF card for video and historical data, compatible with all brand network cameras for live view, timed recording and threshold snapshot;
Intelligent self-adjustment of gate opening based on gate height, flow and downstream water level; low-power standby mode extends outdoor service life.
| 4G Communication | Full-network LTE, Tx <24dBm, Rx <–109dBm | Bluetooth | V5.0, 2.4GHz ISM, 10m range |
|---|---|---|---|
| Touch Screen | 10-inch IPS, 1024×600 | Power Input | DC 9~36V, standby <50mA |
| Sensor Power | 6×12V, max total 3A | External Ports | 4RS485+1RS232+13DI+6DO+6AI+2RJ45 |
| Local Storage | 32/64M Flash, expandable TF card | Operating Temp | -40℃ ~ +70℃ |

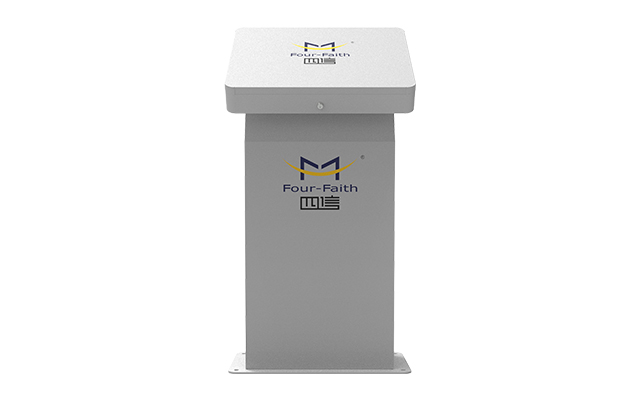

| Control Cabinet | 304 stainless steel IP65, 500×300×1100mm | Sluice Gate | Hard anodized aluminum alloy, IP68 |
| Gate Size | Customized 300~2500mm | Driving Mode | Screw / Chain drive optional |
Digital irrigation zone reconstruction, intelligent agricultural water-saving irrigation, farm channel flow monitoring, agricultural water resource automatic management.
A It supports three control methods: remote platform & APP control, local 10-inch touch screen operation, and physical button control with emergency stop and lock functions.
A Equipped with dual RJ45 ports to access any brand network cameras, supporting real-time live view, scheduled recording and threshold-triggered snapshots stored on TF card.
A The sluice gate adopts IP68 underwater protection grade to prevent silt accumulation and frost heave deformation, suitable for long-term unattended outdoor water conservancy sites.
