It captures JPEG HD photos, supports optional local video recording, adopts RS485/232/TTL serial communication, built-in auto-switch fill light for 0.0001lux full-dark shooting, supports Chinese & English OSD timestamp overlay, 4-wire simple wiring, multi-resolution and adjustable image compression.
Infrared fill light module, different focal length lenses, extended serial shielded cables, customized video recording firmware are available for matching purchase.

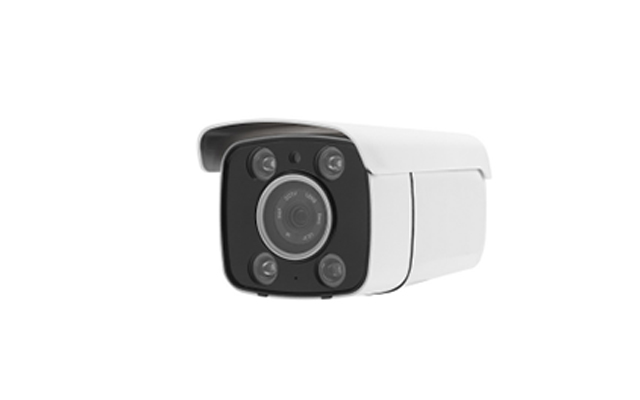

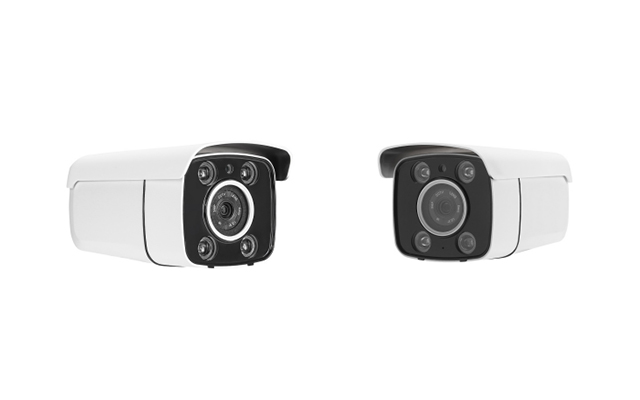

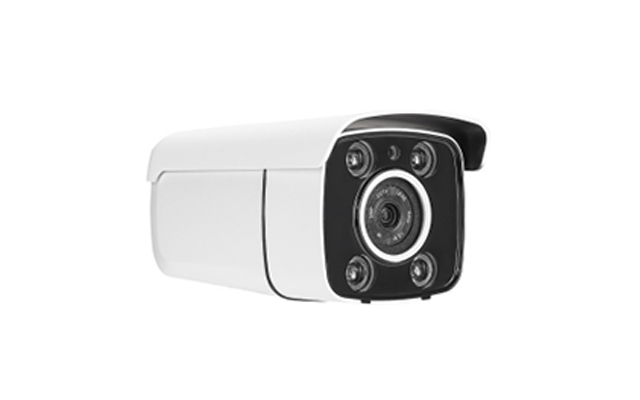

SXH485-H200 is a 2-megapixel black light industrial serial camera with IP67 waterproof housing. It outputs standard JPEG HD still images and supports customized local video recording. Equipped with RS485/RS232/TTL serial communication interface, it features simple wiring and low deployment cost for long-distance monitoring. With ultra 0.0001lux black light sensitivity and built-in auto-switch fill light (white/IR optional), it captures clear color images in total darkness without external lighting. It supports Chinese & English text and timestamp overlay, wide 7~28V power input, complete power & serial surge/reverse connection protection, widely used in water conservancy, power, agriculture, environmental protection and forest fire prevention outdoor monitoring.
0.0001lux black light ultra-low light sensor, captures clear color pictures in complete darkness without auxiliary lighting;
Built-in auto on/off fill light (white light standard, infrared optional), low power consumption only lit during photo capture;
IP67 fully waterproof structure, stable operation from -40℃ to 85℃ for all outdoor harsh environments;
DC7~28V ultra-wide power input, full protection against reverse voltage, surge and lightning strike;
Serial port with anti-surge & misconnection protection, withstand 12V misconnection for 8 hours without damage;
Multiple serial options RS485/RS232/TTL, multi adjustable baud rates, simple 4-wire wiring;
Rich resolution options from 1080P to VGA, 0~8 adjustable image compression for flexible transmission;
Fast startup within 3s, short capture delay, up to 2000m urban night vision monitoring range.
| Sensor | 2MP 1/2.8 CMOS | Min Illuminance | 0.0001lux black light level |
|---|---|---|---|
| Protection | IP67 waterproof & dustproof | Power Input | DC 7~28V (12V standard) |
| Working Current | 80mA standby, ≤400mA night | Power Consumption | 1W (light off), 5W (light on) |
| Serial Interface | RS485/RS232/TTL, 9600~115200 baud | Image Resolution | 1080P/720P/VGA optional |
| Compression Level | 0~8 adjustable | Night Vision Range | 2000m urban, 50~100m open area |
| Operating Temp | -40℃ ~ +85℃ | Storage Temp | -45℃ ~ +90℃ |
| Dimension | 193×90×85mm, Net 0.55kg | Default Lens | 6mm F1.4, replaceable |
Outdoor image monitoring for water conservancy, power stations, agricultural fields, environmental protection, railway, oil field and forest fire prevention projects.
A It supports RS485, RS232 and TTL serial ports with multiple adjustable baud rates for long-distance low-cost wiring.
A Yes, it reaches ultra-low 0.0001lux black light level, with built-in auto switch fill light to capture clear color images at night without extra lighting.
A IP67 waterproof, -40~85℃ wide temperature, fit for water conservancy, power, agriculture, forest fire prevention and other field monitoring scenarios.
